DB2U30800L

Panasonic

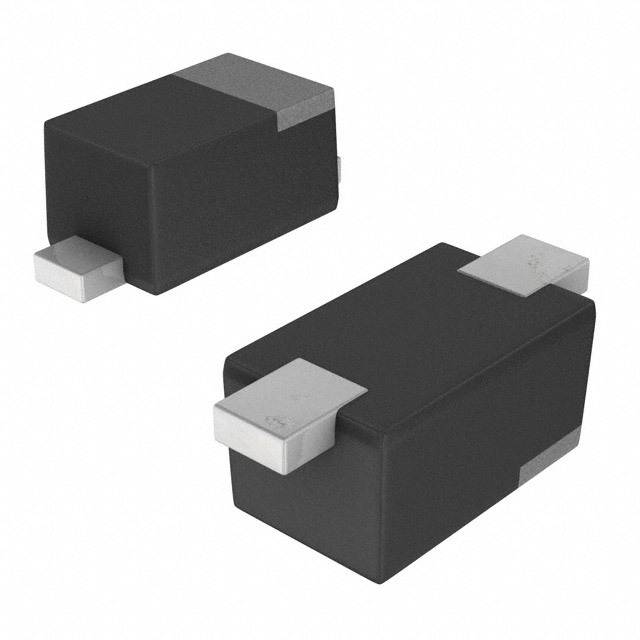

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB2U30800L
Manufacturer/Brand:	Panasonic
Product description	DIODE SCHOTTKY 30V 100MA USSMINI
Datasheets:	DB2U30800L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	266709 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 266709 pcs

Reference Price (In US Dollars)

1 pcs: $0.226

10 pcs: $0.192

100 pcs: $0.144

500 pcs: $0.105

1000 pcs: $0.081

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.226

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB2U30800L

Part Number	DB2U30800L	Manufacturer	Panasonic
Description	DIODE SCHOTTKY 30V 100MA USSMINI	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	266709 pcs	Data sheet	DB2U30800L.pdf
Voltage - Forward (Vf) (Max) @ If	420mV @ 100mA	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	USSMINI2-F2-B	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	1.3ns
Packaging	Original-Reel®	Package / Case	SOD-923
Other Names	P15188DKR	Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 100mA Surface Mount USSMINI2-F2-B	Current - Reverse Leakage @ Vr	120µA @ 30V
Current - Average Rectified (Io)	100mA	Capacitance @ Vr, F	2.9pF @ 10V, 1MHz
Base Part Number	DB2U308
