ALE72F05

Panasonic

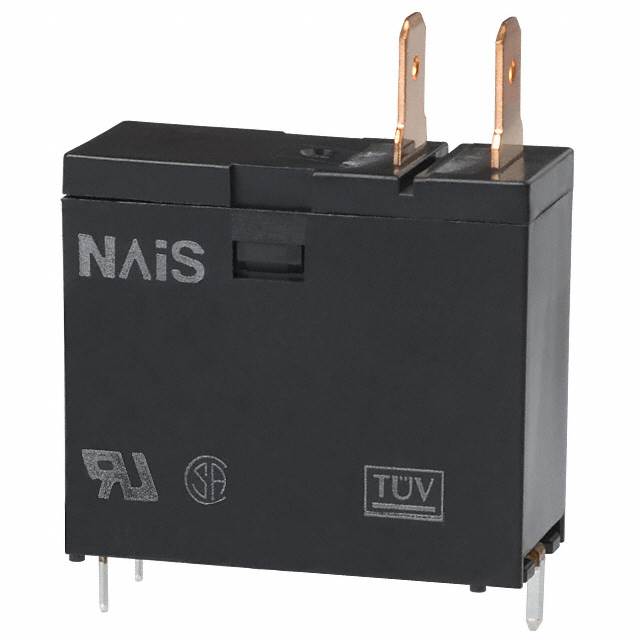

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ALE72F05
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 16A 5V
Datasheets:	ALE72F05.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 53504 pcs

Reference Price (In US Dollars)

100 pcs: $0.656

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.656

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ALE72F05

Part Number	ALE72F05	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 16A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53504 pcs	Data sheet	ALE72F05.pdf
Turn On Voltage (Max)	3.75 VDC	Turn Off Voltage (Min)	0.25 VDC
Termination Style	PC Pin, Quick Connect - 0.187" (4.7mm)	Switching Voltage	277VAC - Max
Series	ALE	Release Time	25ms
Relay Type	General Purpose	Packaging	Bulk
Operating Temperature	-40°C ~ 85°C	Operate Time	20ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Insulation - Class F	Detailed Description	General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Contact Rating (Current)	16A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPST-NO (1 Form A)	Coil Voltage	5VDC
Coil Type	Non Latching	Coil Resistance	125 Ohms
Coil Power	200 mW	Coil Current	40.0mA
