APTM100A13SCG

Microsemi

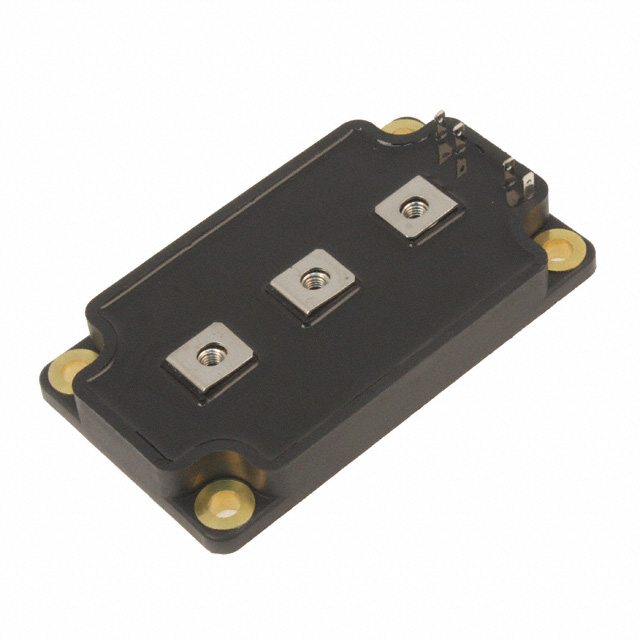

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM100A13SCG
Manufacturer/Brand:	Microsemi
Product description	MOSFET 2N-CH 1000V 65A SP6
Datasheets:	APTM100A13SCG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	411 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 411 pcs

Reference Price (In US Dollars)

1 pcs: $92.757

10 pcs: $88.281

25 pcs: $85.082

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$92.757

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM100A13SCG

Part Number	APTM100A13SCG	Manufacturer	Microsemi
Description	MOSFET 2N-CH 1000V 65A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	411 pcs	Data sheet	APTM100A13SCG.pdf
Vgs(th) (Max) @ Id	5V @ 6mA	Supplier Device Package	SP6
Series	-	Rds On (Max) @ Id, Vgs	156 mOhm @ 32.5A, 10V
Power - Max	1250W	Packaging	Bulk
Package / Case	SP6	Other Names	APTM100A13SCGMI APTM100A13SCGMI-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	15200pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	562nC @ 10V	FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard	Drain to Source Voltage (Vdss)	1000V (1kV)
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 65A 1250W Chassis Mount SP6	Current - Continuous Drain (Id) @ 25°C	65A
