APTGF75DSK120TG

Microsemi

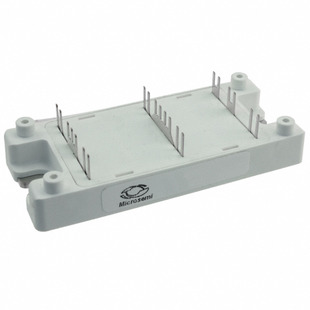

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGF75DSK120TG
Manufacturer/Brand:	Microsemi
Product description	IGBT MODULE NPT BUCK CHOP SP4
Datasheets:	1.APTGF75DSK120TG.pdf 2.APTGF75DSK120TG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5355 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5355 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGF75DSK120TG

Part Number	APTGF75DSK120TG	Manufacturer	Microsemi
Description	IGBT MODULE NPT BUCK CHOP SP4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5355 pcs	Data sheet	1.APTGF75DSK120TG.pdf 2.APTGF75DSK120TG.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	3.7V @ 15V, 75A
Supplier Device Package	SP4	Series	-
Power - Max	500W	Package / Case	SP4
Other Names	APTGF75DSK120TGMP-ND	Operating Temperature	-
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	5.1nF @ 25V	Input	Standard
IGBT Type	NPT	Detailed Description	IGBT Module NPT Dual, Common Source 1200V 100A 500W Chassis Mount SP4
Current - Collector Cutoff (Max)	250µA	Current - Collector (Ic) (Max)	100A
Configuration	Dual, Common Source
