HTB 100-TP

LEM USA, Inc.LEM USA, Inc.

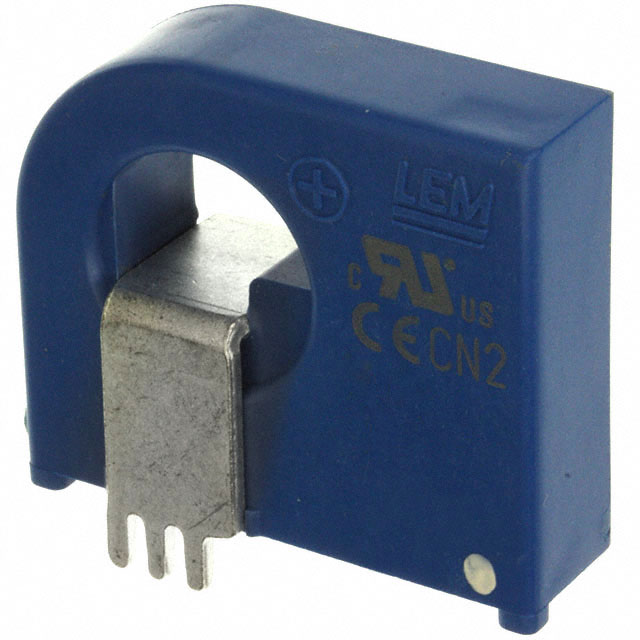

HTB 100-TP Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: HTB 100-TP
Manufacturer/Brand: LEM USA, Inc.
Product description SENSOR CURRENT HALL 100A AC/DC
Datasheets: HTB 100-TP.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4850 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4850 pcs
Reference Price (In US Dollars)
1 pcs
$10.283
5 pcs
$9.814
10 pcs
$8.879
25 pcs
$8.178
50 pcs
$7.244
100 pcs
$7.01
500 pcs
$6.543
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$10.283

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of HTB 100-TP

Part Number HTB 100-TP Manufacturer LEM USA, Inc.
Description SENSOR CURRENT HALL 100A AC/DC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4850 pcs Data sheet HTB 100-TP.pdf
Voltage - Supply ±12 V ~ 15 V Series HTB
Sensor Type Hall Effect, Open Loop Sensitivity -
Response Time 3µs Polarization Bidirectional
Packaging Tray Package / Case Module, Single Pass Through
Output Ratiometric, Voltage Other Names 398-1077
64.64.34.000.0
HTB100TP
Operating Temperature -40°C ~ 80°C Number of Channels 1
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Linearity ±1%
Lead Free Status / RoHS Status Lead free / RoHS Compliant Frequency DC ~ 50kHz
For Measuring AC/DC Detailed Description Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Current - Supply (Max) 15mA Current - Sensing 100A
Accuracy ±1%
