CN15824_WINNIE-M-C

LEDiLLEDiL

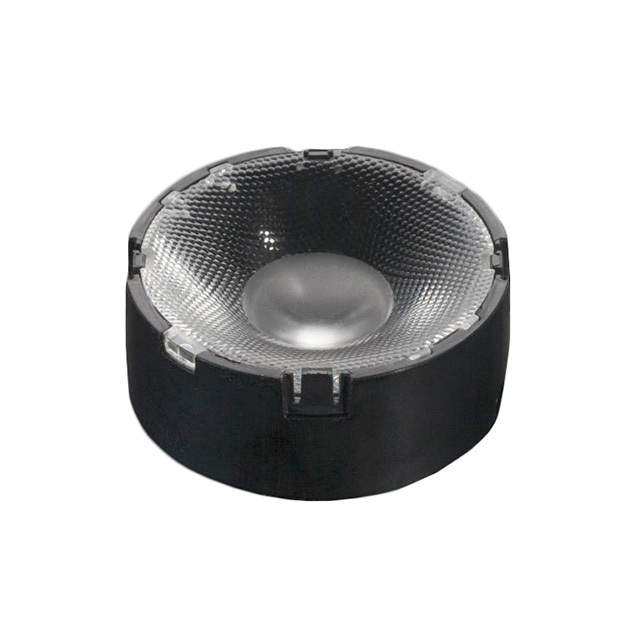

CN15824_WINNIE-M-C Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CN15824_WINNIE-M-C
Manufacturer/Brand: LEDiL
Product description LENS CLEAR 26-48DEG MEDIUM
Datasheets: 1.CN15824_WINNIE-M-C.pdf2.CN15824_WINNIE-M-C.pdf3.CN15824_WINNIE-M-C.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 27579 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 27579 pcs
Reference Price (In US Dollars)
1 pcs
$3.008
10 pcs
$2.723
28 pcs
$2.156
112 pcs
$1.815
252 pcs
$1.702
504 pcs
$1.56
1008 pcs
$1.475
2520 pcs
$1.418
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$3.008

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CN15824_WINNIE-M-C

Part Number CN15824_WINNIE-M-C Manufacturer LEDiL
Description LENS CLEAR 26-48DEG MEDIUM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 27579 pcs Data sheet 1.CN15824_WINNIE-M-C.pdf2.CN15824_WINNIE-M-C.pdf3.CN15824_WINNIE-M-C.pdf
Viewing Angle 26° ~ 48° Type Lens with Holder
Series Winnie Other Names 711-1502
Optical Pattern Medium Number of LEDs 1
Mounting Type - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Acrylic Manufacturer Standard Lead Time 6 Weeks
Lens Transparency - Lens Style Round with Concave Top
Lens Size 50mm Dia Lead Free Status / RoHS Status Lead free / RoHS Compliant
For Use With/Related Manufacturer Bridgelux, Citizen, Cree, Samsung Detailed Description Lens with Holder Clear 26° ~ 48° Medium
Color Clear
