SML-D22MUWT86

LAPIS SemiconductorLAPIS Semiconductor

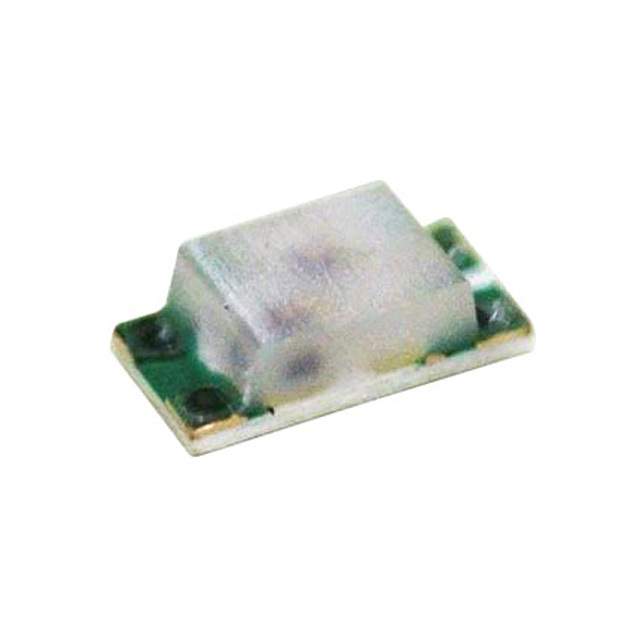

SML-D22MUWT86 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SML-D22MUWT86
Manufacturer/Brand: LAPIS Semiconductor
Product description LED RED/YELLOW-GREEN 1608 SMD
Datasheets: SML-D22MUWT86.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 560124 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 560124 pcs
Reference Price (In US Dollars)
3000 pcs
$0.051
6000 pcs
$0.046
15000 pcs
$0.043
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.051

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SML-D22MUWT86

Part Number SML-D22MUWT86 Manufacturer LAPIS Semiconductor
Description LED RED/YELLOW-GREEN 1608 SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 560124 pcs Data sheet SML-D22MUWT86.pdf
Wavelength - Peak - Wavelength - Dominant 620nm Red, 570nm Yellow-Green
Voltage - Forward (Vf) (Typ) 1.9V Red, 2V Yellow-Green Viewing Angle -
Supplier Device Package 1608 (0603) Size / Dimension 1.60mm L x 0.80mm W
Series SML-D22 Packaging Tape & Reel (TR)
Package / Case 0603 (1608 Metric) Other Names SML-D22MUWT86LM
SML-D22MUWT86TR
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 3 (168 Hours)
Millicandela Rating 16mcd Red, 10mcd Yellow-Green Manufacturer Standard Lead Time 10 Weeks
Lens Transparency - Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Lens Color White Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height (Max) 0.65mm Features -
Detailed Description Red, Yellow-Green 620nm Red, 570nm Yellow-Green LED Indication - Discrete 1.9V Red, 2V Yellow-Green 0603 (1608 Metric) Current - Test 5mA Red, 5mA Yellow-Green
Configuration Independent Color Red, Yellow-Green
