B30B-PNDZS-1 (T) (LF)(SN)

JSTJST

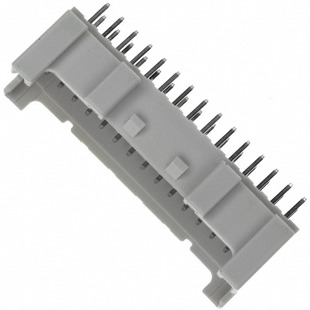

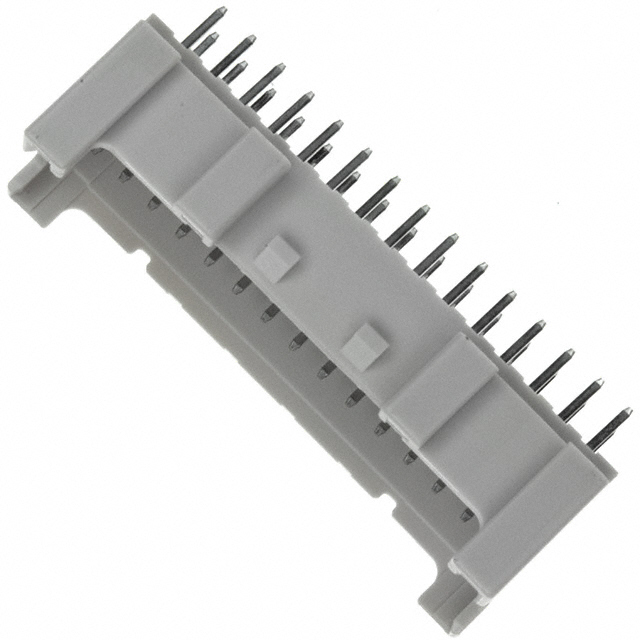

B30B-PNDZS-1 (T) (LF)(SN) Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: B30B-PNDZS-1 (T) (LF)(SN)
Manufacturer/Brand: JST
Product description CONN HEADR PND TOP 30POS 2MM PCB
Datasheets: B30B-PNDZS-1 (T) (LF)(SN).pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 114693 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 114693 pcs
Reference Price (In US Dollars)
1 pcs
$0.389
10 pcs
$0.341
224 pcs
$0.295
672 pcs
$0.241
1120 pcs
$0.214
5152 pcs
$0.187
10080 pcs
$0.178
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.389

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of B30B-PNDZS-1 (T) (LF)(SN)

Part Number B30B-PNDZS-1 (T) (LF)(SN) Manufacturer JST
Description CONN HEADR PND TOP 30POS 2MM PCB Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 114693 pcs Data sheet B30B-PNDZS-1 (T) (LF)(SN).pdf
Voltage Rating 250V Termination Solder
Style Board to Cable/Wire Shrouding Shrouded - 4 Wall
Series PND Row Spacing - Mating 0.197" (5.00mm)
Pitch - Mating 0.079" (2.00mm) Packaging Tray
Overall Contact Length - Other Names 455-2333
B30B-PNDZS-1T(LF)(SN)
B30BPNDZS1TLFSN
Operating Temperature -25°C ~ 85°C Number of Rows 2
Number of Positions Loaded All Number of Positions 30
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights 12.9mm
Manufacturer Standard Lead Time 24 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled Insulation Height 0.390" (9.91mm)
Insulation Color Ivory Ingress Protection -
Features Board Guide Fastening Type Locking Ramp
Detailed Description Connector Header Through Hole 30 position 0.079" (2.00mm) Current Rating 3A
Contact Type Male Pin Contact Shape Square
Contact Material Copper Alloy Contact Length - Post 0.126" (3.20mm)
Contact Length - Mating - Contact Finish Thickness - Post -
Contact Finish Thickness - Mating - Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header
Applications -
