Part Number | IHW15T120FKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
---|---|---|---|
Description | IGBT 1200V 30A 113W TO247-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5454 pcs | Data sheet | IHW15T120FKSA1.pdf |
Voltage - Collector Emitter Breakdown (Max) | 1200V | Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 15A |
Test Condition | 600V, 15A, 56 Ohm, 15V | Td (on/off) @ 25°C | 50ns/520ns |
Switching Energy | 2.7mJ | Supplier Device Package | PG-TO247-3 |
Series | TrenchStop® | Reverse Recovery Time (trr) | 140ns |
Power - Max | 113W | Packaging | Tube |

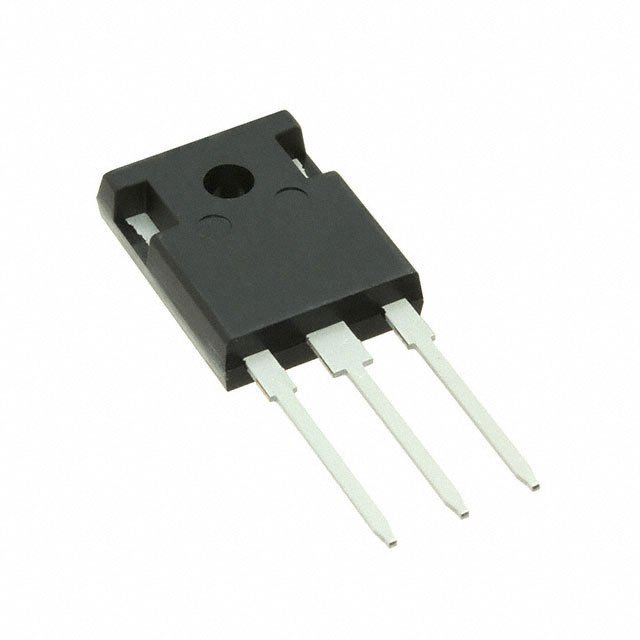

Package / Case | TO-247-3 | Other Names | IHW15T120 IHW15T120-ND SP000014892 |
Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Input Type | Standard | IGBT Type | Trench Field Stop |
Gate Charge | 85nC | Detailed Description | IGBT Trench Field Stop 1200V 30A 113W Through Hole PG-TO247-3 |
Current - Collector Pulsed (Icm) | 45A | Current - Collector (Ic) (Max) | 30A |
