Grayhill, Inc.

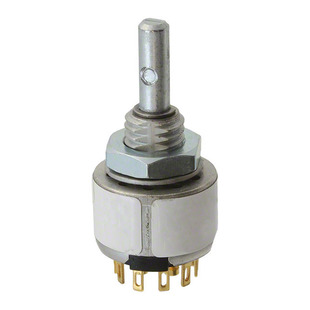

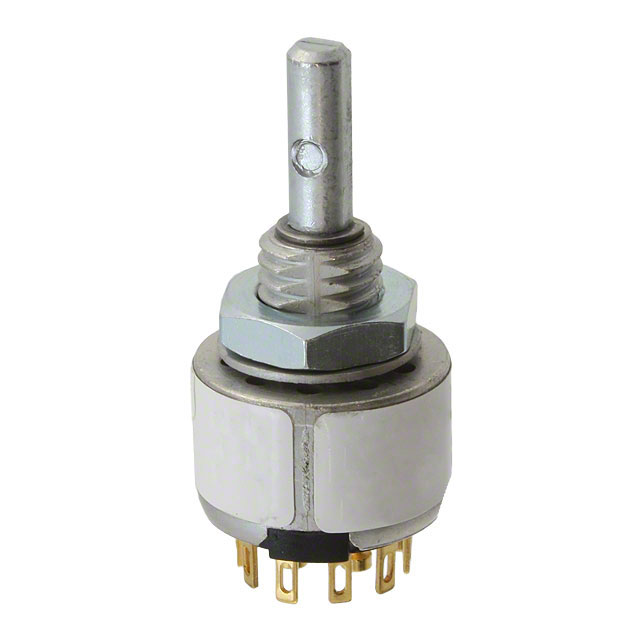

| Part Number | 56SD36-01-2-AJS | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 2-5POS 200MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8799 pcs | Data sheet | 56SD36-01-2-AJS.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 115V |
| Termination Style | Solder Lug | Series | 56 |
| Panel Cutout Dimensions | - | Other Names | 56SD36-01-2-AJS-ND 56SD36012AJS GH7693 |
| Operating Force | 2.520 ~ 6.481gfm | Number of Positions | 2 ~ 5 |
| Number of Poles per Deck | 2 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Adjustable | Features | Shaft and Panel Sealed |
| Detailed Description | Rotary Switch 2 ~ 5 Position DP5T 200mA (AC/DC) 115VAC Panel Mount | Depth Behind Panel | 12.19mm |
| Current Rating | 200mA (AC/DC) | Contact Timing | Shorting (MBB) |
| Contact Material | Brass | Contact Finish | Silver |
| Circuit per Deck | DP5T | Angle of Throw | 36° |
| Actuator Type | Flatted (3.17mm Dia) | Actuator Length | 9.53mm |
