Part Number | FFC0912DE-TP04 | Manufacturer | Delta Electronics |
---|---|---|---|

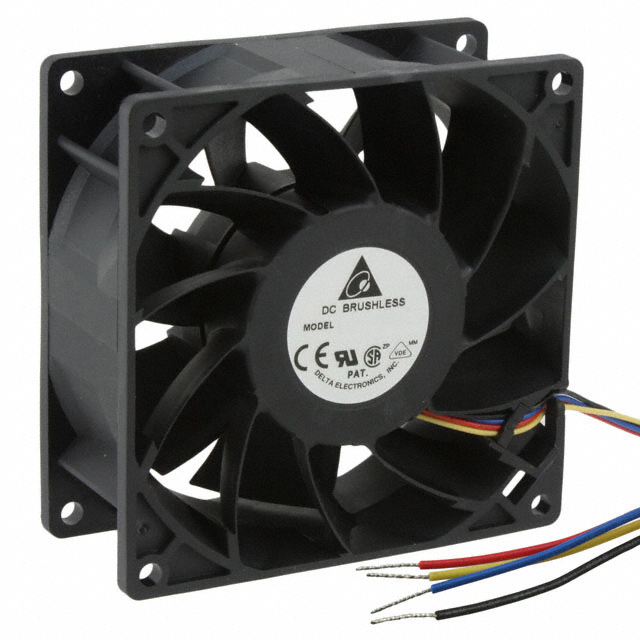

Description | FAN AXIAL 92X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6921 pcs | Data sheet | FFC0912DE-TP04.pdf |
Width | 38.00mm | Weight | 0.436 lb (197.77g) |
Voltage Range | 7 ~ 13.2VDC | Voltage - Rated | 12VDC |
Termination | 4 Wire Leads | Static Pressure | 0.665 in H2O (165.6 Pa) |
Size / Dimension | Square - 92mm L x 92mm H | Series | FFC |
RPM | 4800 RPM | Power (Watts) | 9.60W |
Other Names | 603-1207 FFC0912DE-TP04-ND FFC0912DETP04 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Noise | 55.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Plastic | Material - Blade | Plastic |
Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
Current Rating | 0.800A | Bearing Type | Ball |
Approvals | CE, CSA, UL, VDE | Air Flow | 110.2 CFM (3.09m³/min) |
