EDS08SGNNTU04Q

Agastat Relays / TE ConnectivityAgastat Relays / TE Connectivity

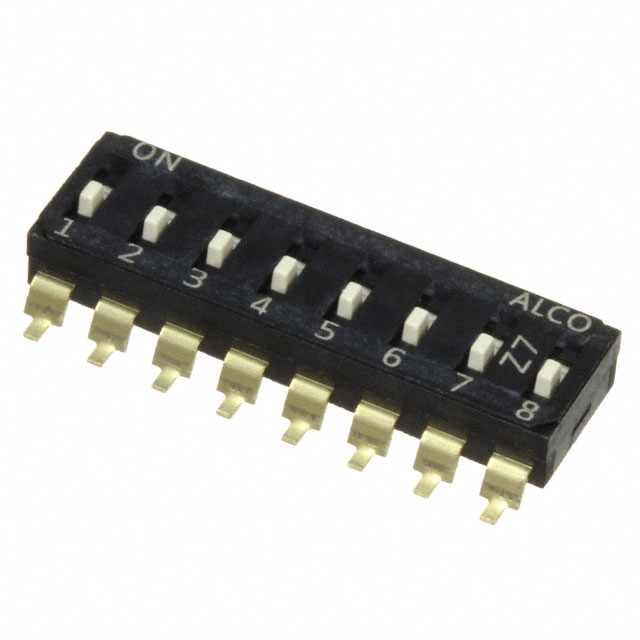

EDS08SGNNTU04Q Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EDS08SGNNTU04Q
Manufacturer/Brand: Agastat Relays / TE Connectivity
Product description END STACK DIP 8P G RAISED TUBE
Datasheets: EDS08SGNNTU04Q.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 89731 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 89731 pcs
Reference Price (In US Dollars)
1 pcs
$0.714
23 pcs
$0.691
46 pcs
$0.656
69 pcs
$0.613
115 pcs
$0.599
253 pcs
$0.513
506 pcs
$0.499
1012 pcs
$0.428
5014 pcs
$0.392
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.714

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EDS08SGNNTU04Q

Part Number EDS08SGNNTU04Q Manufacturer Agastat Relays / TE Connectivity
Description END STACK DIP 8P G RAISED TUBE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 89731 pcs Data sheet EDS08SGNNTU04Q.pdf
Washable No Voltage Rating 24VDC
Termination Style Gull Wing Series EDS
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names 2319847-8
450-2616		 Operating Temperature -20°C ~ 85°C
Number of Positions 8 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 2,000 Cycles
Manufacturer Standard Lead Time 9 Weeks Length 0.796" (20.22mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.150" (3.80mm)
Features - Electrical Life 2,000 Cycles
Detailed Description Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC Current Rating 25mA
Contact Material Copper Alloy Contact Finish Gold
Circuit SPST Body Material Polyamide (PA), Nylon
Actuator Type Slide (Standard) Actuator Level Raised
