APAM2764YK0175

Abracon CorporationAbracon Corporation

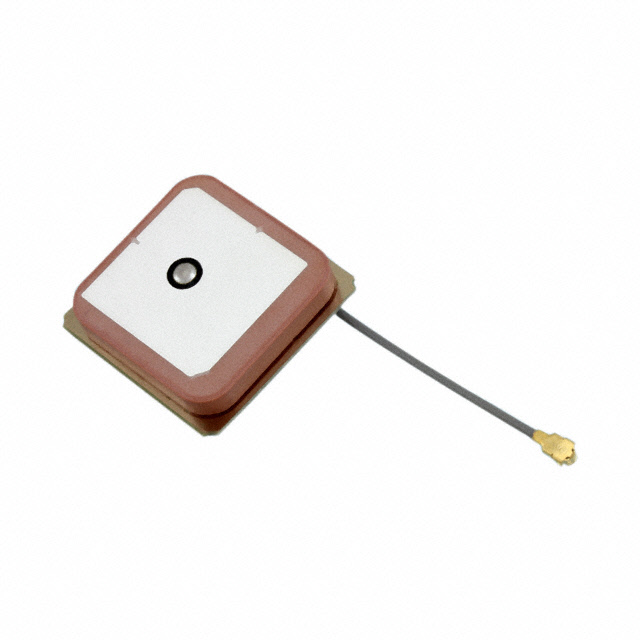

APAM2764YK0175 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: APAM2764YK0175
Manufacturer/Brand: Abracon Corporation
Product description RF ANT 1.575GHZ CER PATCH CAB
Datasheets: APAM2764YK0175.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 24728 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 24728 pcs
Reference Price (In US Dollars)
1 pcs
$2.809
10 pcs
$2.526
25 pcs
$2.302
100 pcs
$2.077
250 pcs
$1.909
500 pcs
$1.74
1000 pcs
$1.516
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.809

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of APAM2764YK0175

Part Number APAM2764YK0175 Manufacturer Abracon Corporation
Description RF ANT 1.575GHZ CER PATCH CAB Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 24728 pcs Data sheet APAM2764YK0175.pdf
VSWR 1.5 Termination Cable (50mm) - IPEX
Series - Return Loss -
Packaging Tray Other Names 535-12615
Number of Bands 1 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 7 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Height (Max) 0.276" (7.00mm) Gain 2.5dBic
Frequency Range 1.573GHz ~ 1.578GHz Frequency Group UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) 1.575GHz Features LNA
Detailed Description 1.575GHz GPS Ceramic Patch RF Antenna 1.573GHz ~ 1.578GHz 2.5dBic Cable (50mm) - IPEX Surface Mount Applications GPS
Antenna Type Ceramic Patch
