HCTR-503

API Delevan

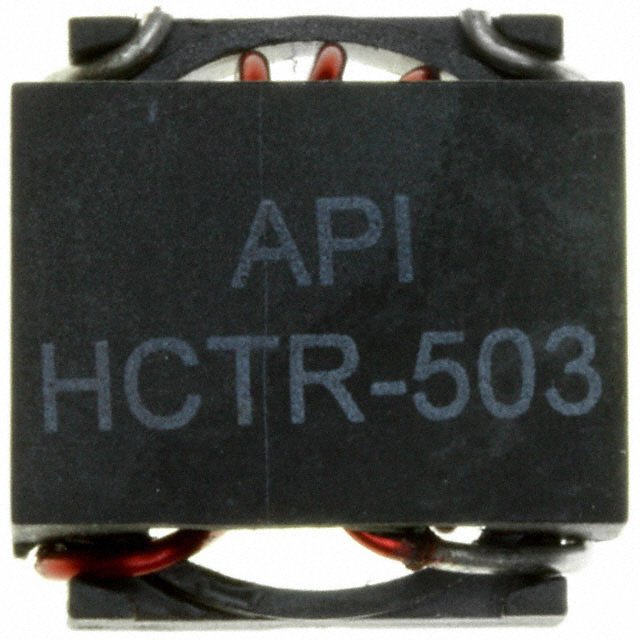

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCTR-503
Manufacturer/Brand:	API Delevan
Product description	FIXED IND 12.5UH 9.25A 11.4 MOHM
Datasheets:	HCTR-503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36826 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36826 pcs

Reference Price (In US Dollars)

1000 pcs: $0.935

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.935

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCTR-503

Part Number	HCTR-503	Manufacturer	API Delevan
Description	FIXED IND 12.5UH 9.25A 11.4 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36826 pcs	Data sheet	HCTR-503.pdf
Type	Toroidal	Tolerance	±25%
Supplier Device Package	-	Size / Dimension	0.740" L x 0.740" W (18.80mm x 18.80mm)
Shielding	Shielded	Series	HCTR
Ratings	-	Q @ Freq	23 @ 100kHz
Packaging	Bulk	Package / Case	Nonstandard
Other Names	DN4801 HCTR-503 BULK 50	Operating Temperature	-30°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	12.5µH	Height - Seated (Max)	0.400" (10.16mm)
Frequency - Self Resonant	35MHz	Detailed Description	12.5µH Shielded Toroidal Inductor 9.25A 11.4 mOhm Max Nonstandard
DC Resistance (DCR)	11.4 mOhm Max	Current Rating	9.25A
Current - Saturation	-
